RSA-500L


  Equipment Components

  Grinding Equipment
   The exact working of the weld height is carried out
   by a CNC axis system per each belt grinding unit.
   The pipe geometry around the weld is measured by
   laser distance sensors (one laser per each belt
   grinding unit). The measurements are necessary for
   the entire grinding process.

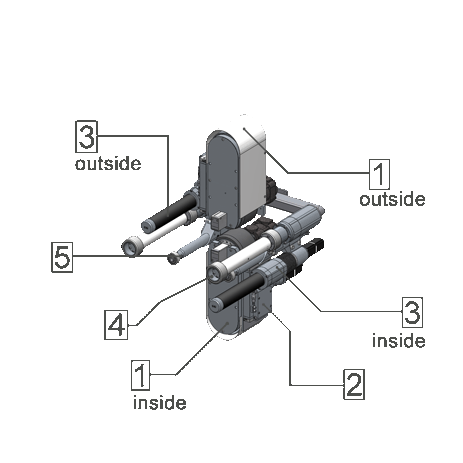

   1 Belt grinder outside / inside
   Working of weld height inside and outside of pipe ends

   2 Radial axis
   Vertical movement of grinding unit

   3 Axial axis
   Movement of grinding equipment parallel
   to pipe axis

   4 Rotational axis
   Movement of grinding equipment
   circumferential to pipe

   5 Clamping unit
   Fixing of grinding equipment to pipe
  Controls / Control Cabinet
 • Intelligent, high-performance servo amplifiers
 • Disc-based, extendable I/O system
 • Integrated safety technology
 • Air- conditioned and robust assembly
  Operator Console
 • 5.7" colour display
 • Height adjustable operator console
 • Control of grinding functions
  Grip
 • Manual positioning of grinding machine
   at pipe end
 • Manual pivoting of grinding machine
   between operating and maintenance positions
  Handling
   The following components are available:
 • Pivoting pillar
 • Travel axis
 • Horizontal axis
  Operator Platform
   The following components are available:
 • Fixed working platform
 • Movable platform
 • Lifting plate
  Exhaust
 • High-performance turbopump
 • Precise suction directly at grinding units
  Hydraulic Unit
   Hydraulic aggregate is designed
   with performance requirements in mind.
