RSA-500S

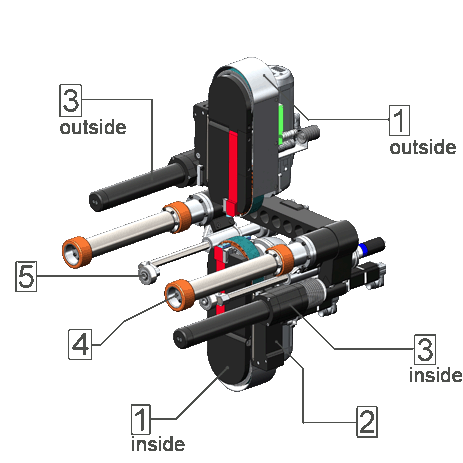

| Grinding Equipment The drawing shows complete grinding head but without cables and handling devices. In the simulation (see Clips) we point out a technical innovation: The parallel position of the grinding belt toward the pipe surface at all time. 1 Belt grinder outside / inside Working of weld height inside and outside of pipe ends 2 Radial axis Vertical movement of grinding unit 3 Axial axis Movement of grinding equipment parallel to pipe axis 4 Rotational axis Movement of grinding equipment circumferential to pipe 5 Clamping unit Fixing of grinding equipment to pipe |
 |
