SSA-500L


   Equipment Components

   Grinding Equipment
   The exact working of the weld height is carried out
   by a CNC axis system per each belt grinding unit.
   The pipe geometry around the weld is measured
   by laser distance sensors (one laser per each belt
   grinding unit).
   The measurements are necessary for the
   entire grinding process.
   Distinctive feature:
   The grinding belt is in a parallel position
   to the pipe surface at all times.

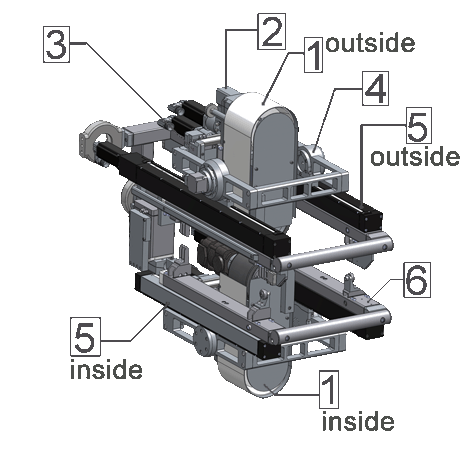

   1 Belt grinder outside / inside
   Working of weld height inside and outside
   of pipe ends

   2 Radial axis
   Vertical movement of grinding unit

   3 Tangential axis
   Horizontal movement of grinding unit

   4 Angular axis
   Parallel positioning of grinding unit
   to pipe surface

   5 Axial axis
   Movement of grinding machine parallel
   to pipe axis

   6 Clamping unit
   Fixing of ginding machine against pipe
   Robot
   The 3-way articulated robot positions
   the grinding machine toward the weld.
   Varying positions of pipe and weld
   are automatically detected by sensors.
   Then the fast and precise positioning of
   the grinding machine toward the relevant
   pipe position takes place.
   Wagon
   Designed according to costumer requirements.
   The wagon is a platform that moves along rails.
   All equipment components are assembled on it.
   Controls / Control Cabinet
 • 19" colour touch screen
 • Optimally scaled CPU
 • Intelligent, high-performance servo-amplifiers
 • disc-based, expandable I/O system
 • Integrated safety technology
 • Air-conditioned and robust assembly
   Hydraulic unit
   Hydraulic aggregate is designed  with
   performance requirements in mind.
   Exhaust
 • High-performance turbopump
 • Precise suction directly at grinding units
   Safety Arrangements
   Protection for personnel
